คำอธิบาย
Model : RH2836W / RH2846W / RH2866W
Output Terminals : Low impedance:4-16 ohms(Ω)
350W : Voltage line:70V(13.6 ohms(Ω)) 100V(27.8 ohms(Ω)).
450W : Voltage line:70V(10.7 ohms(Ω)) 100V(21.7 ohms(Ω))
650W : Voltage line:70V(7.4 ohms(Ω)) 100V(15.1 ohms(Ω))
LINE Input : 10k ohms(Ω) < 1V ,unbalanced
AUX Output : 10k ohms(Ω) 0.775V (0 dB) ,unbalanced
Frequency Response : 60 Hz ~ 15k Hz (± 3 dB)
THD : <0.5% at 1kHz,1/3 of rated power
S/N : >70 dB
Damping Factor : 200
Controls : Volume control,power switch
Cooling Fan : DC 12V FAN
Indicator : AC:‘POWER’,‘CLIP’,‘SIGNAL’,‘PROT’,‘TEMP’
Protection : AC FUSE×10A / AC FUSE×12A / AC FUSE×15A
AC FUSE×1,short circuit,overload,high temperature
Power Cord : (3×1.5 mm2)×1.5M (Standard)
AC Power : AC110V~120V, AC220V~240V 50-60Hz optional
Consumption : 485W / 620W / 880W
Dimension : 89(H)×483(W)×366(D)mm
Packing Size : 185(H)×520(W)×435(D)mm
Net Weight : 15.12kg / 17.66kg / 19.74kg
Gross Weight : 16.76kg / 19.3kg / 21.36kg
Front & Rear Panel Details:

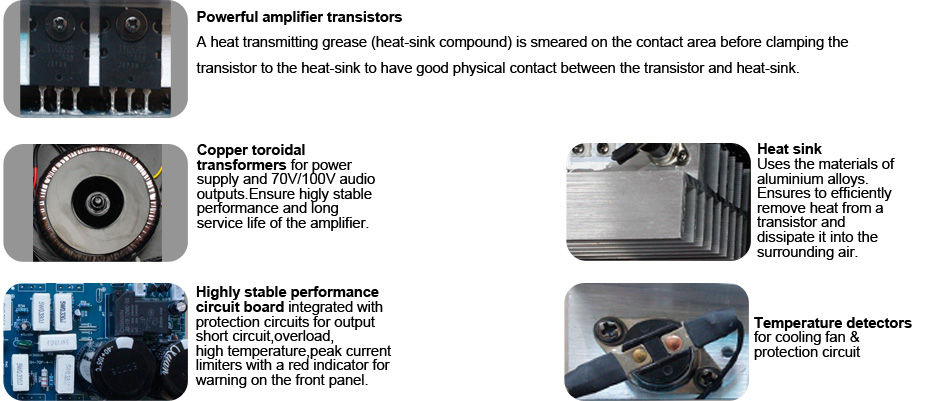

Interior Main Parts:
Reference Connection:
Note:
Select only one output terminal of 70V,100V or 4-16 Ohms to be with COM.
Never use two “hot ends” to join together.
If other outputs are needed,please use the LINK output to connect another power amplifier.
